The G-Series is our press brake line for a bit bigger bending needs. They are the perfect answer when you require an accurate and constant angle over long bends.

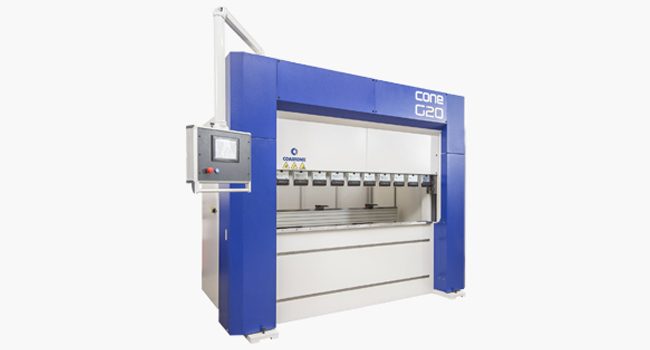

G20

The G20 features an O-frame just like all the G-Series press brakes. It deflects less than a conventional C-frame while still remaining lighter. The G20 has three servo driven ball screws which crown and bend simultaneously. Due to the servos’ high accuracy, the upper beam can be CNC deflected to “follow” the lower beam seamlessly. This is the unique system that gives you a great bending result. This is CoastOne’s unique direct crowning.

In addition to servo technology’s superior kinematic, it also saves the environment. The lack of hydraulic oil also eliminates expensive oil changes, spare parts, valves and maintenance expenses common to hydraulic press brakes.

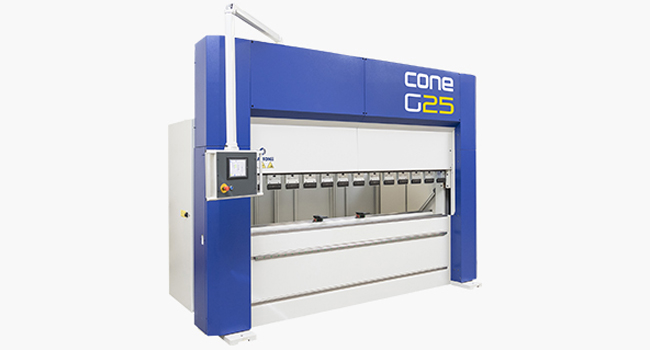

G25

The G25 features an O-frame just like all the G-Series press brakes. It deflects less than a conventional C-frame while still remaining lighter. The G25 has four servo driven ball screws which crown and bend simultaneously. Due to the servos’ high accuracy, the upper beam can be CNC deflected to “follow” the lower beam seamlessly. This is the unique system that gives you a great bending result. This is CoastOne’s unique direct crowning.

In addition to servo technology’s superior kinematic, it also saves the environment. The lack of hydraulic oil also eliminates expensive oil changes, spare parts, valves and maintenance expenses common to hydraulic press brakes.

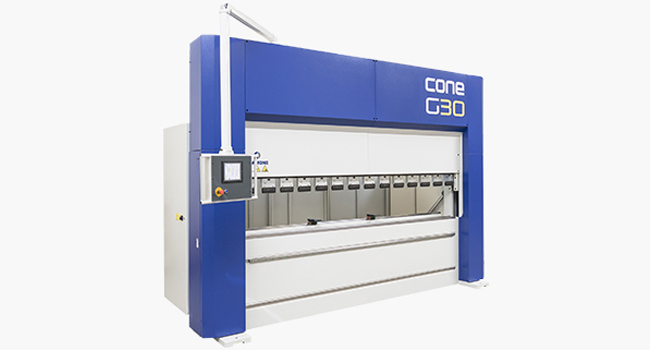

G30

The G30 features an O-frame just like all the G-Series press brakes. It deflects less than a conventional C-frame while still remaining lighter. The G30 has five servo driven ball screws which crown and bend simultaneously. Due to the servos’ high accuracy, the upper beam can be CNC deflected to “follow” the lower beam seamlessly. This is the unique system that gives you a great bending result. This is CoastOne’s unique direct crowning.

In addition to servo technology’s superior kinematic, it also saves the environment. The lack of hydraulic oil also eliminates expensive oil changes, spare parts, valves and maintenance expenses common to hydraulic press brakes.

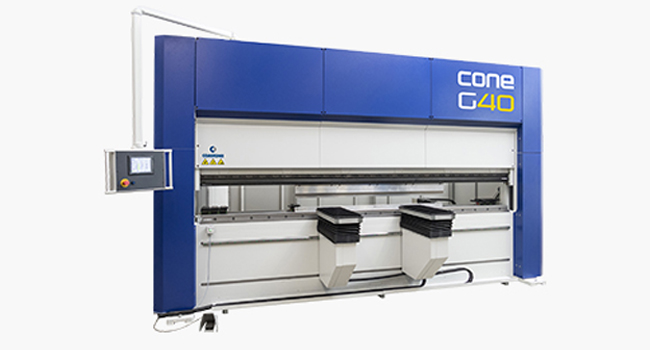

G40

The G40 features an O-frame just like all the G-Series press brakes. It deflects less than a conventional C-frame while still remaining lighter. The G40 has six servo driven ball screws which crown and bend simultaneously. Due to the servos’ high accuracy, the upper beam can be CNC deflected to “follow” the lower beam seamlessly. This is the unique system that gives you a great bending result. This is CoastOne’s unique direct crowning.

In addition to servo technology’s superior kinematic, it also saves the environment. The lack of hydraulic oil also eliminates expensive oil changes, spare parts, valves and maintenance expenses common to hydraulic press brakes.


C15

The biggest machine of the C-Series features two servo driven ball screws. Its bending length allows you to bend a big variety of parts while still maintaining low operating costs. The C15 is a versatile machine and a lucrative alternative for a bigger press brake.

Coastone’s signature servo driven ball screws make the machine accurate but also very environmental friendly. The lack of hydraulic oil eliminates expensive oil changes, spare parts, valves and maintenance expenses common to hydraulic press brakes.


C15X

The tallest C-Series machine, the C15X, provides a bigger daylight compared to the standard machine. It allows more versatile bending capabilities and tooling options. Besides the additional height the C15X is much alike the standard C15. It features 2 ball screws and a maximum bending length of 1550 mm.

Coastone’s signature servo driven ball screws make the machine accurate but also very environmental friendly. The lack of hydraulic oil eliminates expensive oil changes, spare parts, valves and maintenance expenses common to hydraulic press brakes.


P20AP – Simple and easy

P20AP is simple and compact in construction, easy to operate, and can be easily carried to anywhere.

Finn Power P20 series of crimping machines represent the “lightweights” of the Finn Power range. They are simple and straightforward in construction, easy to operate, and can easily be carried to where they are needed. The most popular applications for these portable Finn Power crimping machines are in repair shops and in industrial maintenance units.

Options
  • QC-Tool
  • Mechanical backstop device

P20CS – Simple and compact

P20CS is simple and compact in construction, easy to operate, and can be easily carried to anywhere.

Finn Power P20 series of crimping machines represent the “lightweights” of the Finn Power range. They are simple and straightforward in construction, easy to operate, and can easily be carried to where they are needed. The most popular applications for these portable Finn Power crimping machines are in repair shops and in industrial maintenance units.

Options
  • QC-Tool
  • Mechanical backstop device

P32CS – Compact and powerful

P32CS is mid-range in terms of power, but compact from the point of view of space requirements.

Finn Power P32CS crimping machine provides 2000 kN crimping force in a highly compact, ergonomic design. It is ideally suited for single-piece production in machine shops, repair workshops etc. All tabletop machines can be mounted on a QC Tool Base. Up to 16 die sets can be stored in a base for operator convenience.

Options
  • QC-Tool
  • Mechanical backstop device
